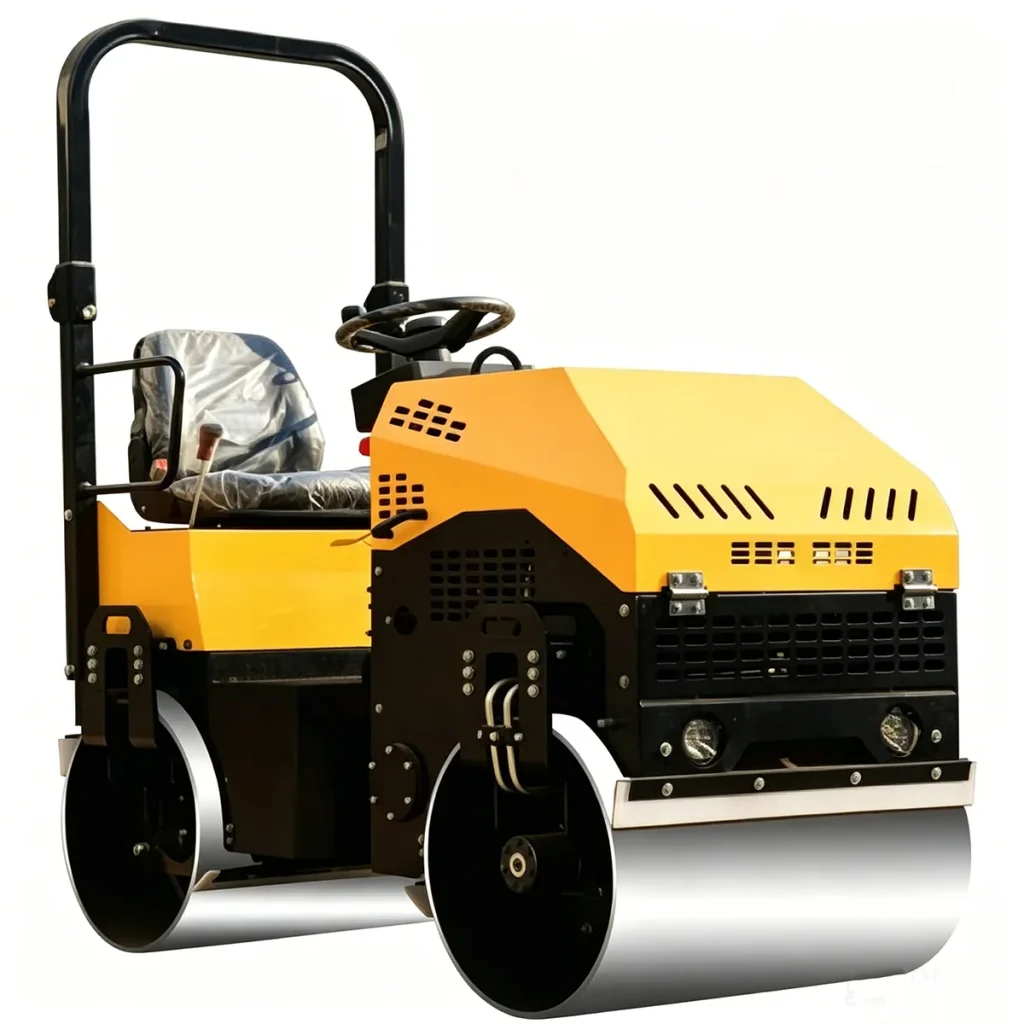

1 Ton Full Hydraulic Ride-On Road Roller
The 1 Ton Full Hydraulic Ride-On Road Roller is designed for efficient compaction of asphalt, soil, and gravel in small to medium construction projects. Equipped with a full hydraulic drive system, it ensures smooth operation, strong climbing ability, and stable performance in narrow working environments such as sidewalks, parking areas, and road maintenance projects. Its compact structure makes transportation and operation highly convenient while maintaining high compaction efficiency.
| Engine Model | CF195FD-4 |
| Centrifugal Force(KN) | 35 |
| Vibration Frequency(Hz) | 69 |
| Drum Width(mm) | 800 |
Technical Specifications
| Parameter | Value |
| Model | 1 Ton Full Hydraulic |
| Operating Weight（kg） | 1000 |
| Engine Model | CF195FD-4 |
| Emission Standard | EURO 4 |
| Engine Power(kW / HP) | 8 |
| Engine Type | Air-cooled 4-stroke single-cylinder diesel |
| Centrifugal Force(kN) | 35 |
| Vibration Frequency(Hz) | 69 |
| Nominal Amplitude(mm) | 0.5 |
| Travel Speed(km/h) | 0-8 |
| Gradeability(%) | 30 |
| Drum Width(mm) | 800 |
| Drum Diameter(mm) | 530 |
| Water Tank Capacity(L) | – |
| Fuel Tank Capacity(L) | 5.5 |
| Overall Dimensions (L×W×H)(mm) | 1,865 × 900 × 2,080 |
| Certification | CE |
