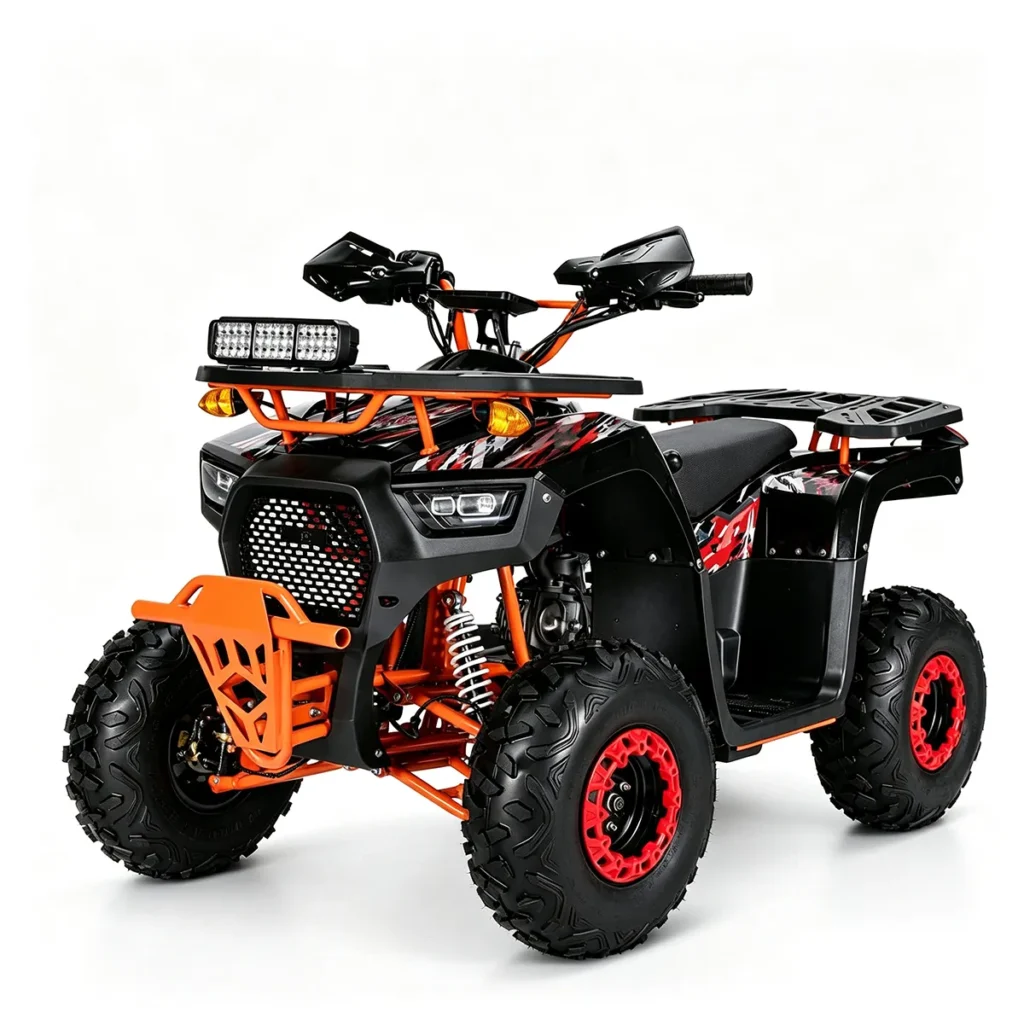

XQY-1 125CC ATV
The XQY-1 125CC ATV is a compact all-terrain vehicle powered by a single-cylinder four-stroke carburetor engine with electric start and automatic clutch. It features a 3-forward + 1-reverse gear transmission, 428 chain drive, and a reinforced steel tube frame. With front dual hydraulic disc brakes, rear single hydraulic disc brake, and dual hydraulic suspension on both axles, it delivers reliable stopping power and stable handling. The 8-inch vacuum tires with A-pattern tread provide strong grip on dirt, sand, and gravel. Equipped with a square LCD meter with fuel gauge and rear dual tail lights, it is ideal for recreational riding and light utility tasks.
| Seat Height(mm) | 700 |
| Tire Size (inch) | 8-inch, A-Pattern Tread |
| Operating Weight (kg) | 100 |
| Overall Dimensions L×W×H (mm) | 1550 × 950 × 1000 |
Technical Specifications
| Parameter | Value |
| Model | XQY-1 |
| Engine Displacement (cc) | 125 |
| Engine Type | Single-Cylinder, 4-Stroke, Carburetor |
| Start Mode | Electric Start |
| Clutch Type | Automatic Clutch |
| Transmission | 3 Forward + Neutral + 1 Reverse |
| Frame | Reinforced Steel Tube Welding |
| Drive Type | 428 Chain Drive |
| Fuel Tank Capacity (L) | 3 (Iron Tank) |
| Fuel Consumption (L/100km) | 3 |
| Brake System | Front Dual Hydraulic Disc, Rear Single Hydraulic Disc |
| Suspension | Front Dual Hydraulic, Rear Single Hydraulic |
| Tire Size (inch) | 8-inch Iron Hub Vacuum Tire, Front 19×7-8, Rear 18×9.5-8 (A-Pattern Tread) |
| Dashboard | Square LCD Meter with Fuel Gauge |
| Max. Gradeability (°) | < 45 |
| Max. Speed (km/h) | 50 |
| Overall Dimensions L×W×H (mm) | 1550 × 950 × 1000 |
| Seat Height (mm) | 700 |
| Wheelbase (mm) | 1000 |
| Packing Dimensions L×W×H (mm) | 1430 × 850 × 750 |
| Packing Method | Steel Frame + Carton + Waterproof Film |
| Operating Weight (kg) | 100 |
| Other Features | Single Iron Rack, Horizontal Bar Light, Hand Guards, Decals, Turn Signals, Manual Gear Shift Lever, Rear Dual Tail Lights, Thumb Throttle, Front & Rear Plastic Panels, Adjustable Rocker Arm, Hub Rings |
