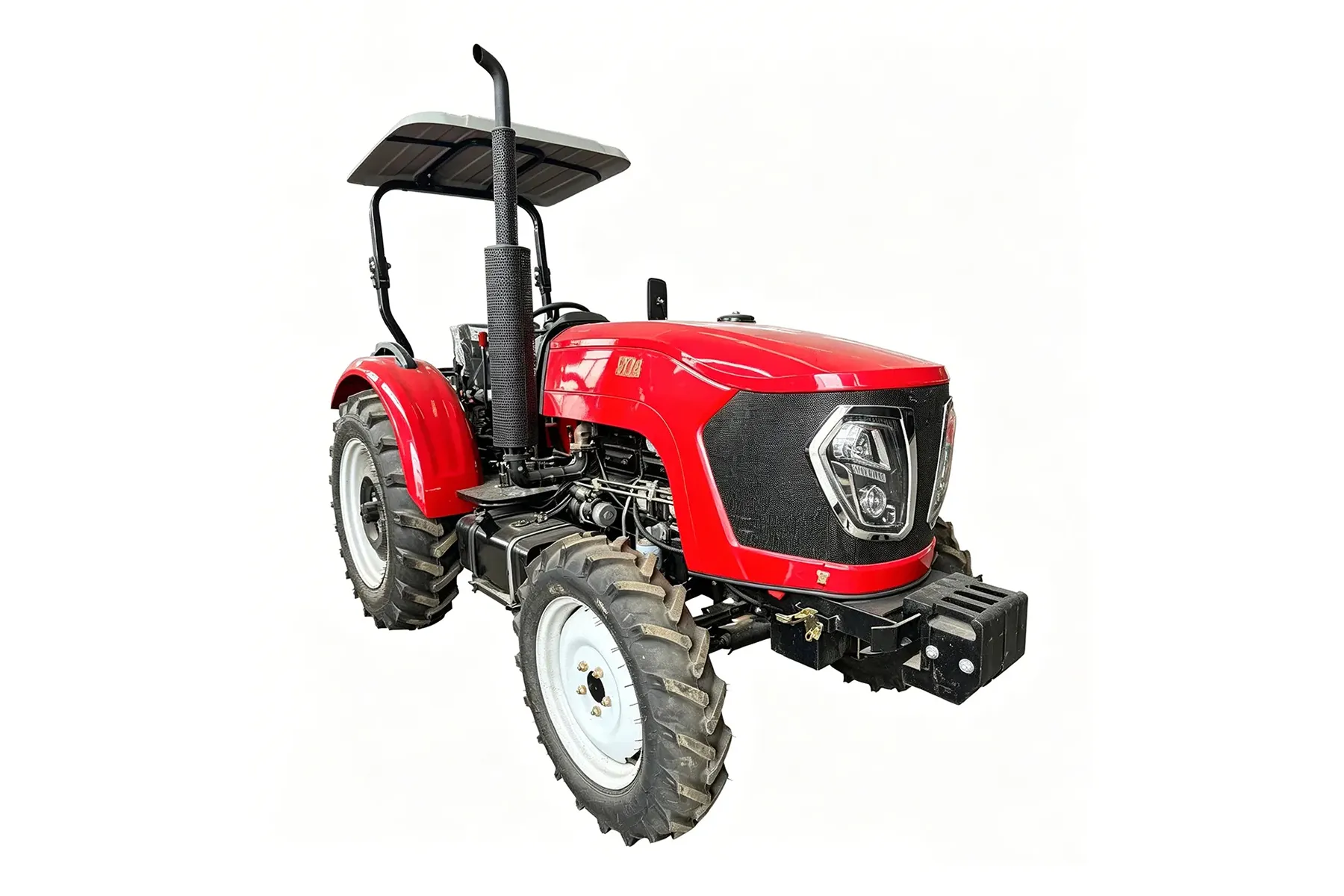

90 HP Farm Tractor with Switchable 2WD/4WD

The 90 HP Switchable 2WD/4WD Agricultural Tractor is designed for demanding agricultural operations requiring high power, strong traction, and versatile implement compatibility.
Powered by a 66.2 kW diesel engine delivering 90 HP, the tractor provides strong power for heavy-duty field operations, soil preparation, cultivation, transportation, and other agricultural tasks.
The switchable 2WD/4WD drivetrain allows operators to select the appropriate drive configuration according to terrain and working conditions. An 8+8 transmission provides a practical range of operating speeds, with forward speeds from 2.40 to 33.34 km/h.
With a maximum traction force of 27.8 kN and an operating weight of approximately 3,220 kg, this tractor is designed for applications requiring high pulling capability and excellent stability.
The tractor features adjustable front and rear wheel tracks, a 540/720 rpm PTO, and a three-point hitch, enabling compatibility with a wide range of agricultural implements.

Wheelbase
2080 mm
Transmission
8+8

Key Advantages

High Traction Capability

With 27.8 kN maximum traction, the tractor provides strong pulling performance for heavy implements and difficult field conditions.

Heavy-Duty Chassis

The 3,220 kg operating weight contributes to improved stability and traction during demanding operations.

Adjustable Wheel Track

Multiple wheel-track configurations from 1200 to 1500 mm provide flexibility for different agricultural applications.

Versatile Three-Point Hitch

The three-point hitch provides a standardized connection for a wide range of mounted implements.

Technical Specifications

📄 PDF
Basic Information & Dimensions ▼
Drive Type
Switchable 2WD/4WD
Operating Weight
3220
Overall Dimensions
3400 × 1600 × 2200 mm
Wheelbase
2080 mm
Maximum Drawbar Pull
27.8 kN
Engine Type
Diesel
Rated Power
66.2 kW · 90 HP
Transmission
8+8
Forward Speed Range
2.40–33.34 km/h
PTO Speed
540 / 720 rpm
Hitch Type
Three-Point Hitch
Applications
Agricultural Operations

Frequently Asked Questions

The tractor is equipped with a 90 HP diesel engine, equivalent to 66.2 kW.
Yes. The tractor features a switchable 2WD/4WD drivetrain.
It uses an 8+8 transmission.
The maximum traction force is 27.8 kN.
The forward speed range is 2.40–33.34 km/h.
The PTO provides 540/720 rpm.
The tractor uses a three-point hitch for mounted agricultural implements.
Yes. The front wheel track can be configured at 1200, 1300, 1400, or 1500 mm, while the rear wheel track can be adjusted from 1200 to 1500 mm.
The specified tire sizes are 8.3-20 front and 12.4-28 rear.
The operating weight is approximately 3,220 kg.
