50/60 HP 4WD Compact Greenhouse Tractor

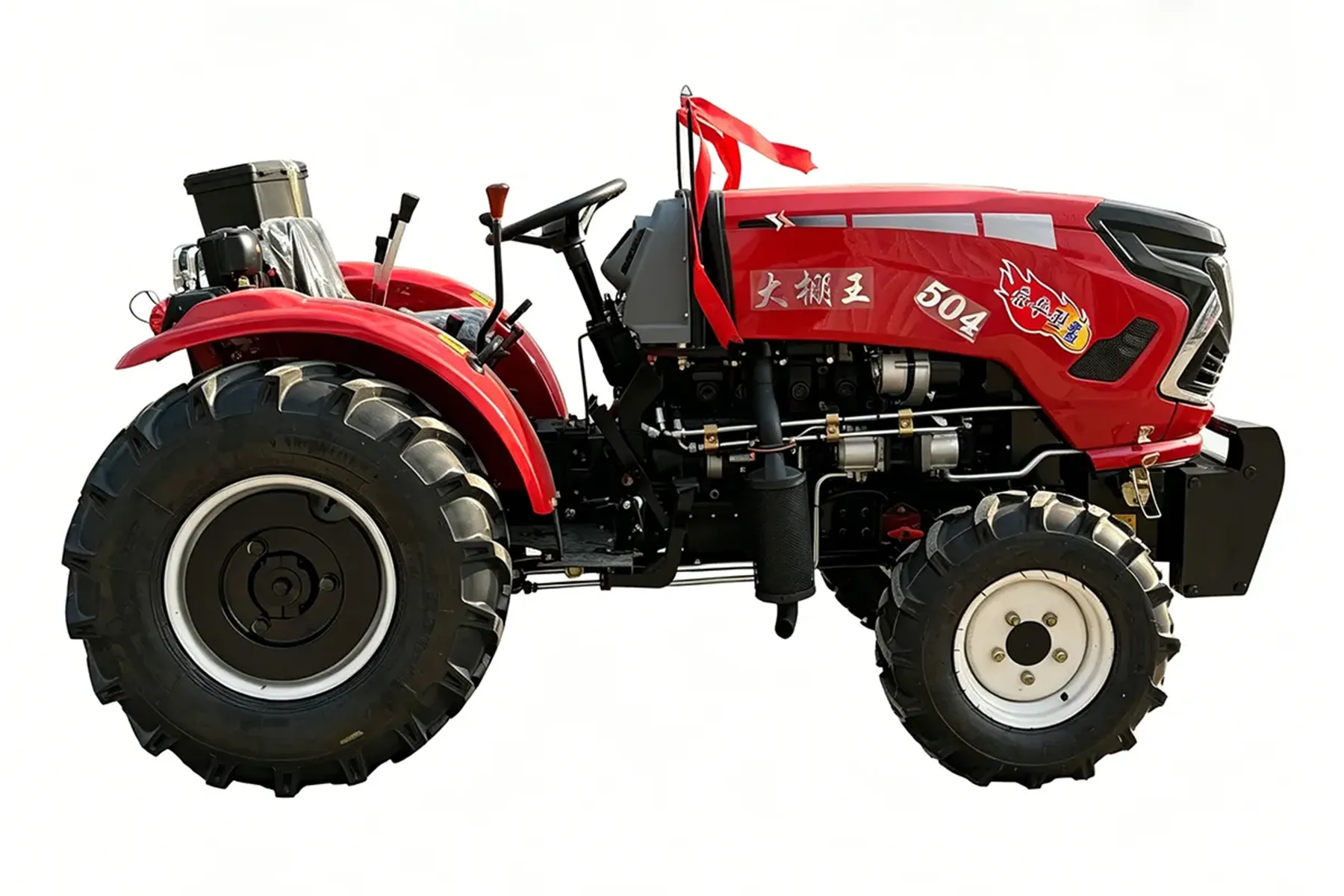

The 50/60 HP 4WD Compact Greenhouse Tractor is a low-profile four-wheel-drive tractor designed for greenhouse farming and other agricultural operations requiring a compact tractor configuration.

Available with 50 HP or 60 HP Weifang series diesel engines, the tractor provides 36.85 kW or 44.50 kW of engine power. The 4WD drivetrain and heavy-duty rear axle are designed for agricultural field operations.

The tractor is available with either an 8+2 gear transmission or an 8+8 shuttle transmission with high and low speed ranges. A 540/720 rpm power take-off provides compatibility with suitable PTO-driven agricultural implements.

With overall dimensions of 2350 × 1250 × 1230 mm, a 1850 mm wheelbase, and 240 mm ground clearance, the tractor has a compact, low-profile configuration suitable for greenhouse and other agricultural applications.

The tractor uses a three-point hitch and hydraulic strong lift/strong down system. Different agricultural implements can be selected according to the customer’s requirements.

Wheelbase
1850 mm
Transmission
8+2 / 8+8 Shuttle Transmission

Key Advantages

Compact Greenhouse Configuration

With an overall height of 1230 mm and width of 1250 mm, the tractor has a compact configuration designed for greenhouse and agricultural operations.

Hydraulic Strong Lift and Strong Down

The hydraulic system provides strong lifting and lowering functions for three-point mounted implements.

Heavy-Duty Rear Axle

The tractor is equipped with a reinforced heavy-duty rear axle for agricultural operations.

Hydraulic Three-Point Hitch

The hydraulic lift system provides powered lifting and lowering for compatible three-point-mounted agricultural implements.

Technical Specifications

📄 PDF
Basic Information & Dimensions ▼
Model
50/60HP 4WD Agricultural Tractor
Drive Type
4WD
Operating Weight
1500
Overall Dimensions
2350 × 1250 × 1230 mm
Wheelbase
1850 mm
Rear Track
9.5-16 mm
Ground Clearance
240 mm
Maximum Drawbar Pull
17.4 kN
Engine Brand
Weifang
Engine Type
Diesel
Rated Power
36.85 / 44.50 kW · 50 / 60 HP
Transmission
8+2 / 8+8 Shuttle Transmission
Forward Speed Range
1.73–29.27 km/h
PTO Speed
540 / 720 rpm
Hitch Type
Three-Point Hitch
Applications
Greenhouses, Orchards, Agricultural Operations
Rotary Tilling Width
130–160 cm

Frequently Asked Questions

The tractor is available with 50 HP and 60 HP engine configurations.
Yes. The tractor uses a four-wheel-drive configuration.
It uses a Weifang diesel engine available in 50HP and 60HP configurations.
The tractor can be equipped with an 8+2 transmission or an 8+8 shuttle transmission with high and low speed ranges.
The maximum drawbar pull is 17.4 kN.
The PTO provides 540/720 rpm.
The operating weight is 1500 kg.
The forward speed range is 1.73–29.27 km/h.
The ground clearance is 240 mm.
The tractor uses a three-point hitch for compatible agricultural implements.
The specified rotary tilling width is 130–160 cm.
Yes. Different compatible agricultural implements can be optionally equipped through the three-point hitch and PTO system.
